R+ZQ001A20m × 10mcovered

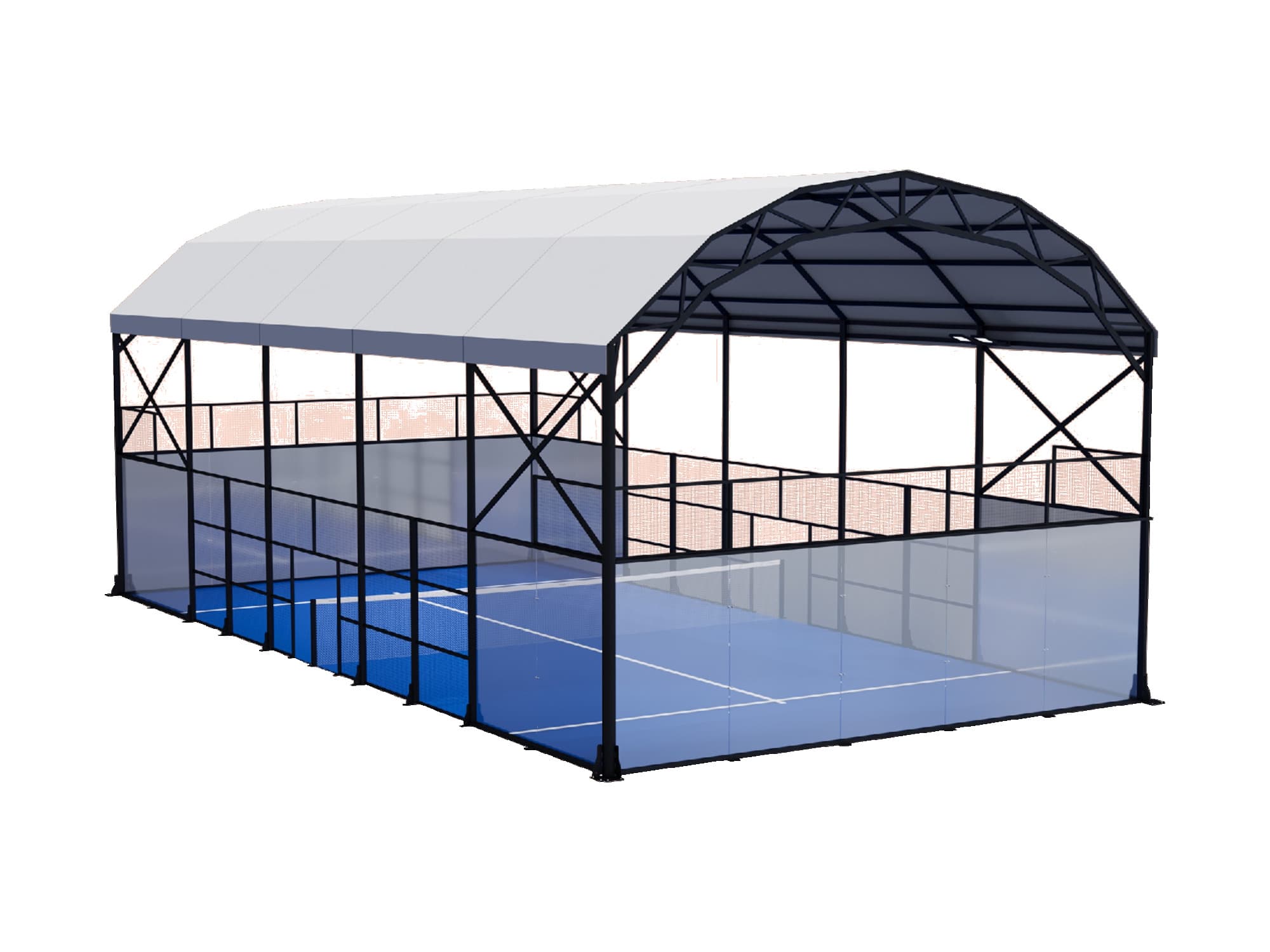

One-Piece Awning
Sun, rain, and play — all year.
An 8.5m engineered canopy with PVC-coated white fabric (8–10 year lifespan) shelters the entire 20×10m court without obstructing sightlines.
01
8.5m main beam from ground
02
PVC-coated, double-sided fabric
03
8–10 year canopy lifespan
04
Welded steel-tube trusses
The spec
Built sheet-by-sheet.
Every dimension, every alloy, every fastener. Below is the full bill of materials we'll quote against — adjustable on request.
Quote this court| Dimension | 20m × 10m |
|---|---|
| Corner Column | 100×100×3.0 rectangular, 6m |
| Main Beam Height | 8.5m, constructed with 100×50×2.75 bent |
| Compression Tube | 80×40×1.5 rectangular |
| Lighting Arm | 6m, vertical column mounted |
| Sunshade Fabric | 750 g white, fully opaque, double-sided PVC, 8–10 yr |
| Glass | 12mm tempered, 1995×2995 mm |
